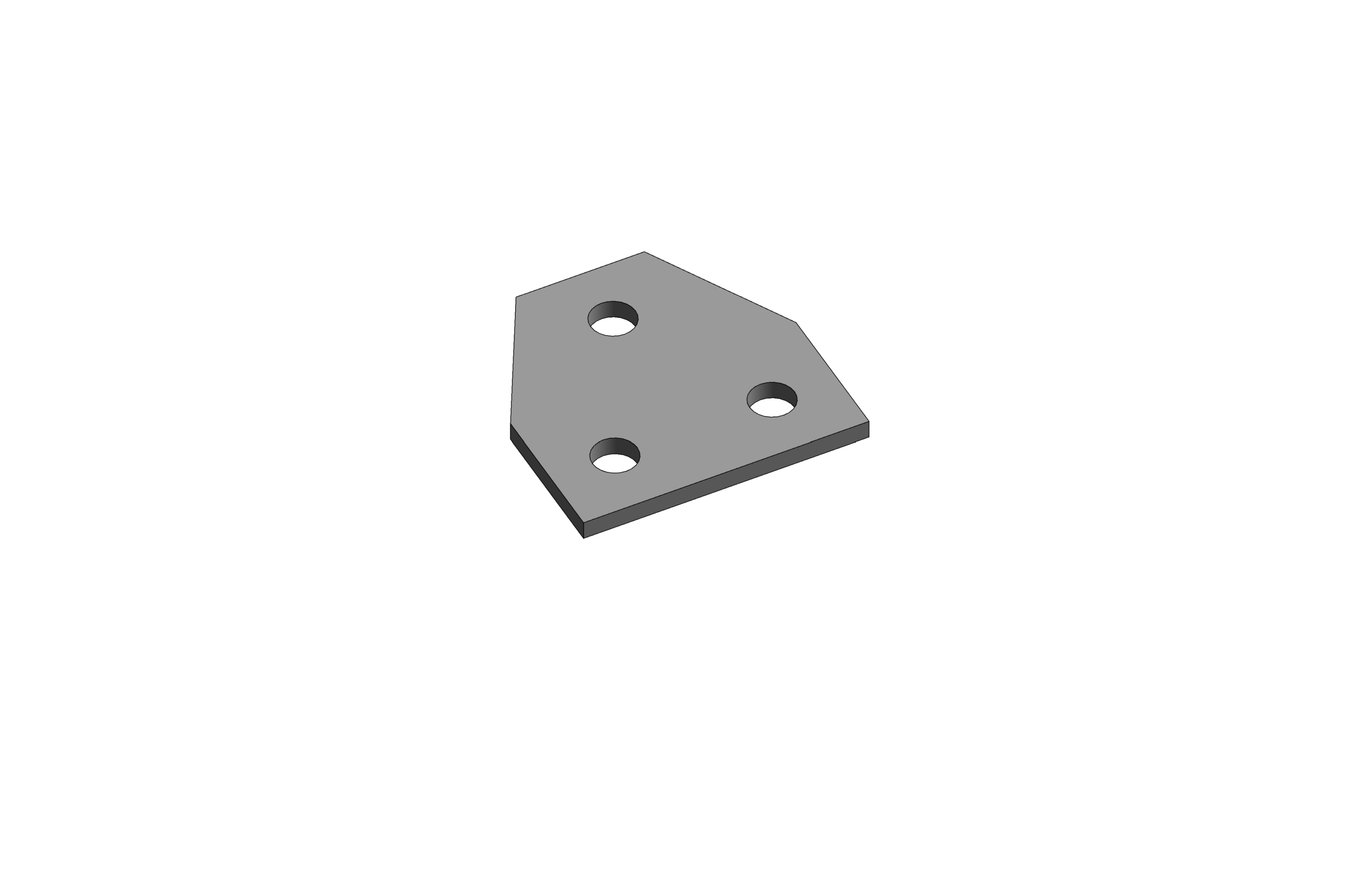

3 Hole Diagonal Half Plate

Key Features:

  • Designed to form secure 90° T-joint connections between strut channels
  • Diagonal corner profile provides improved clearance and easier installation in confined spaces
  • Enhances structural rigidity and efficient load transfer at the joint
  • Provides strong and stable support for branch channel connections
  • Compatible with standard 41 mm strut channel systems
  • Available in multiple hole diameters and thicknesses to suit different load requirements
  • Precision-drilled holes enable fast, accurate, and secure installation
  • Eliminates the need for welding, reducing installation time and labor
  • Corrosion-resistant finishes ensure long-term durability in indoor and outdoor environments
  • Manufactured from high-strength carbon steel or stainless steel for reliable performance
Get a Quote

Hole Diagonal Half Plate (NT-C10)

1 File(s) • 3 MB
Download
Categories: , ,

Description

Applications:

  • 90° T-joint channel connections
  • Structural framing systems
  • MEP support systems
  • HVAC support installations
  • Pipe support systems
  • Cable tray support systems
  • Equipment support structures
  • Industrial and commercial construction projects
